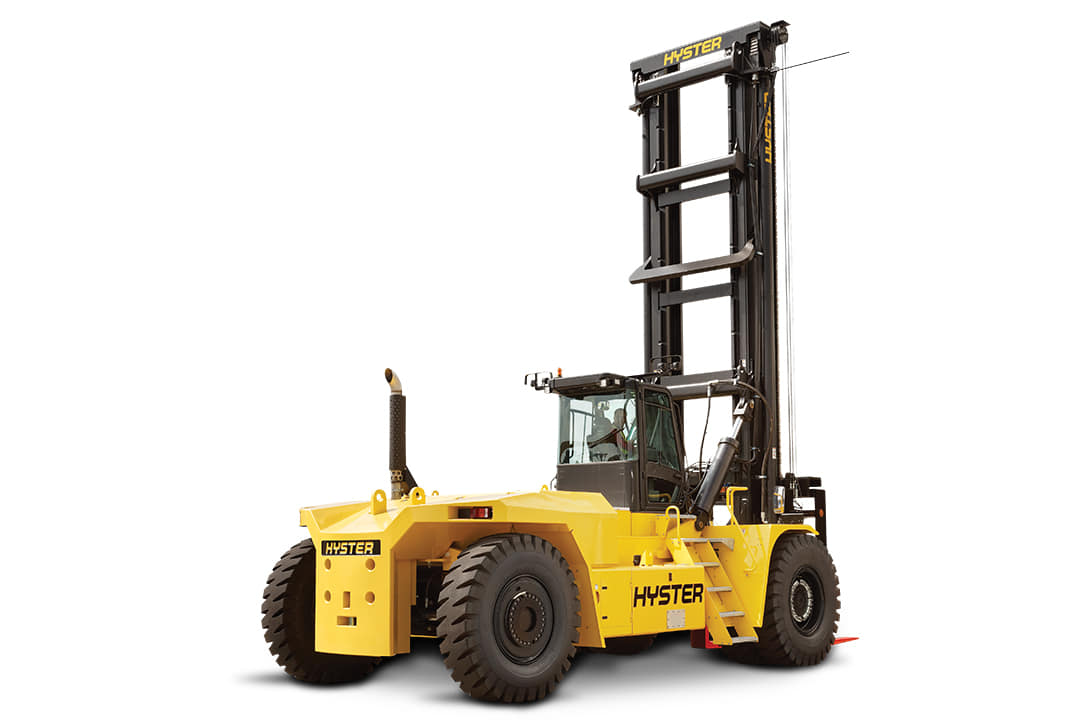

H800-1050XD
VERSATILE, POWERFUL AND DEPENDABLE
Designed to move your biggest loads with ease
- Intelligent design
- Low cost of ownership
- Easily serviceable
- Operator comfort
- Performance optimization
Features
- Heavy-duty mast and carriages are engineered for long load centers, wide loads and specialty loads in heavy duty-cycle conditions.
- Carriages are designed to have minimal capacity derate with apron sideshifting carriages, enabling the truck to provide close to full rated capacity under all operating conditions. Greaseable load rollers help the front end components to provide years of dependable performance. The mast, with robust mast channels, rollers, stub shafts and chain anchors, helps to prevent less mast deflections.
- The engine design produces more power and torque using XPI high-pressure, common-rail fuel injection and variable geometry turbochargers. Advanced controls enable the engine to provide peak performance and operating efficiency while delivering great fuel economy and durability.
- Extended hydraulic oil change intervals of 2000 hours help the truck remain in operation with longer time between oil changes or servicing.
- Curved, scratch resistant, tempered glass front and rear windshields, armored glass top window and steel-framed glass doors provide operators with excellent all-around visibility. On the exterior, sloping counterweights enhance visibility of steer tires for improved maneuverability and reduced tire gouging.
- The high-performance powertrain has built-in engine and transmission protection systems, providing maximum reliability and a low total cost of ownership. Fast travel speeds and lifting speeds help contribute to reduced operating costs during a shift with class-leading lift speeds.
Specifications
- Max Weight: 105,821 lbs
- Capacity: 80000-105821 lbs
- Max Height: 503
- Type: HIGH CAPACITY INTERNAL COMBUSTION TRUCKS PNEUMATIC TIRE
- Series Title: H800-1050XD
| Model | Load Capacity | Load Center | Lift Height | Turning Radius | Overall Width | Weight | Engine Type | Transmission |
|---|---|---|---|---|---|---|---|---|
| H1050XD | 105821lbs | 48in | 503 | 307 | 165 | 126611 | Cummins QSL 9L Diesel | Dana S.O.H TE 30 |
| H800XD | 80000lbs | 48in | 503 | 284 | 165 | 111390 | Cummins QSL 9L Diesel | Dana S.O.H TE 30 |
| H900XD | 90000lbs | 48in | 503 | 284 | 165 | 122312 | Cummins QSL 9L Diesel | Dana S.O.H TE 30 |
| H970XD | 97000lbs | 48in | 503 | 307 | 165 | 127229 | Cummins QSL 9L Diesel | Dana S.O.H TE 30 |
| H1050XDS | 105000lbs | 48in | 503 | 284 | 165 | 133402 | Cummins QSL 9L Diesel | Dana S.O.H TE 30 |
